380V 3.37Kw Automatic Super Cone Machine With 7-8kg/H LPG Consumption

380V 3.37Kw Automatic Super Cone Machine With 7-8kg/H LPG Consumption

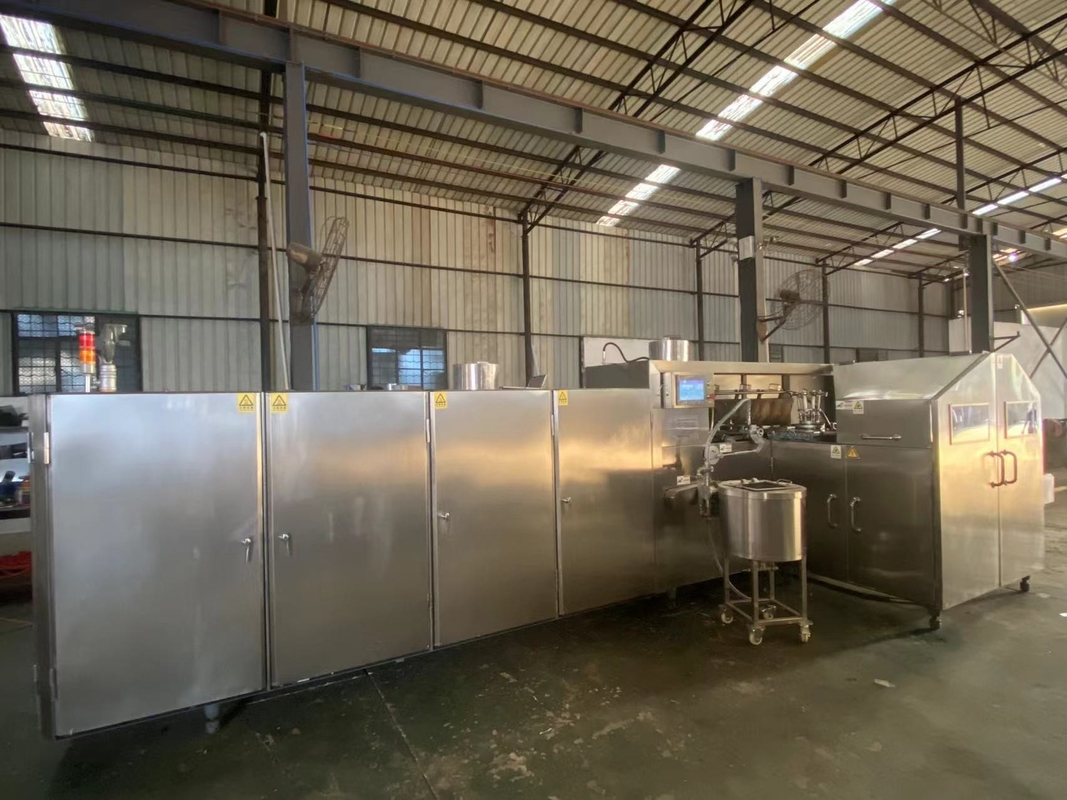

1,The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds and conveying products.

Voltage:380V

Total Power: 3.37kw

LPG consumption: 7-8kg/h

Capacity:2200-2500pcs/h

Dimension:L8xW2.1xH2m

Net weight:4800kg

Electrical accessories:French brand: Schneider

Controller:French brand : Schneider

Working principle:

Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough,then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.

Standard equipment:

1,conveyor

Voltage:220V

Power:0.75kw

Dimension: 5mx0.6mx0.7m

It is used to deliver the finished products to the assembly shop in a neat line.

2,Receiver

Standard:L 1.5M x W0.4M x H0.7M

It is used for stacking the product into a string for convenient counting and packing.

Features of ice cream cone production line:

1. Automatic wafer baking oven equipped with Touch-screen and programmed by Siemens. PLC Software,this unit is of natural gas to generate the heat energy to make ice cream cone.

2. The equipment is easy to operate which with automatic temperature control,lighting to finish the baking process.

3. From filling flour paste to get a ice cream cone just need 2mins,one time molding.High efficiency.

Packaging & Shipping

1. We always use standard export wooden packing,carton box.

2. You will get full feedback when your machine is on the way.

3. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.
